ComplexSignals (BLOCKCOMPLEXSIGNAL)

Description

This is a more flexible signal, it is more complex but lets you do way more with the signal than the BLOCKSIGNAL.
Signal documentation

Structure

Information regarding the structure

Multiple OBJs, Base and References can be used for single and multiple signals as well.
The following example show a few possibilities, but there are more constellations possible.

singlegroup.json
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
{
  "id": "simple-single-lamp", // (1)!
  "name": "Simple Single Lamp Signal", // (2)!
  "rotationSteps": 10, // (3)!
  "signals": { // (4)!
    "main_lamp": { // (5)!
      "groupName": "Main lamp", // (6)!
      "states": { // (7)!
        "off": { // (8)!
          "signalName": "Off", // (9)!
          "models": { // (10)!
            "singlelampsignal/singlelampsignal.obj": [ // (11)!
              {
                "textures": "off", // (12)!
                "item": { // (13)!
                  "DEFAULT": { // (14)!
                    "translation": [ // (15)!
                      0.625,
                      0.125,
                      0
                    ],
                    "rotation": [ // (16)!
                      0,
                      180,
                      0
                    ],
                    "scaling": [ // (17)!
                      0.8,
                      0.8,
                      0.8
                    ]
                  }
                },
                "block": { // (18)!
                  "translation": [ // (19)!
                    0.5,
                    0,
                    0.5
                  ],
                  "rotation": [ // (20)!
                    0,
                    180,
                    0
                  ],
                  "scaling": [ // (21)!
                    1,
                    1,
                    1
                  ]
                }
              }
            ]
          }
        },
        "white": {
          "signalName": "White",
          "models": {
            "singlelampsignal/singlelampsignal.obj": [
              {
                "textures": "white",
                "item": {
                  "DEFAULT": {
                    "translation": [
                      0.625,
                      0.125,
                      0
                    ],
                    "rotation": [
                      0,
                      180,
                      0
                    ],
                    "scaling": [
                      0.8,
                      0.8,
                      0.8
                    ]
                  }
                },
                "block": {
                  "translation": [
                    0.5,
                    0,
                    0.5
                  ],
                  "rotation": [
                    0,
                    180,
                    0
                  ],
                  "scaling": [
                    1,
                    1,
                    1
                  ]
                }
              }
            ]
          }
        },
        "red": {
          "signalName": "Red",
          "models": {
            "singlelampsignal/singlelampsignal.obj": [
              {
                "textures": "red",
                "item": { //
                  "DEFAULT": {
                    "translation": [
                      0.625,
                      0.125,
                      0
                    ],
                    "rotation": [
                      0,
                      180,
                      0
                    ],
                    "scaling": [
                      0.8,
                      0.8,
                      0.8
                    ]
                  }
                },
                "block": {
                  "translation": [
                    0.5,
                    0,
                    0.5
                  ],
                  "rotation": [
                    0,
                    180,
                    0
                  ],
                  "scaling": [
                    1,
                    1,
                    1
                  ]
                }
              }
            ]
          }
        }
      }
    }
  }
}

  1. The identifier of the block and item.

    Required field!

    Needs to be unique!
    If more than one block within the same contentpack has the same id, only one will be loaded.

    Should not be changed!
    Changing the id will break existing blocks.

  2. The name of the block and item.

    Required field!

    Can be changed later on.
    Does not have to be unique, although that helps.

  3. The steps in which the block can be rotated.

    Optional field.

    Default value: 10
    Allowed values: 10 - 90

    Can be changed later on.

  4. Includes all the groups your signal has.
    Groups are independent parts of your signal.
    One signalbox can only control one independent part.
    Groups do not interact with each other.

    Required field!
    Needs atleast one entry.

    Should be able to be changed later on. (Not tested!)

    Adding new groups is no issue.

    Removing groups may break existing blocks.

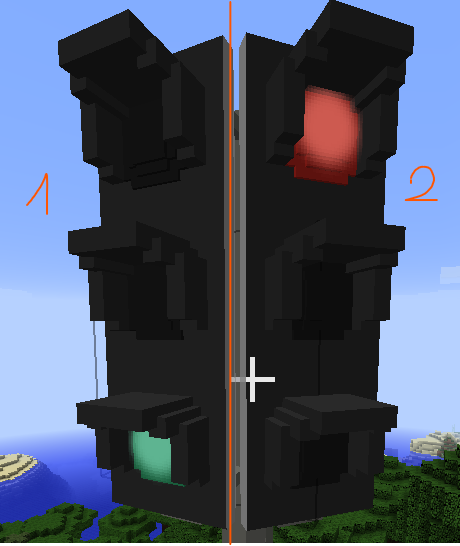

  5. A group that can be selected by a signalbox

    Required field!

    Should not be changed!

    Changing the group id will most likely break existing blocks.

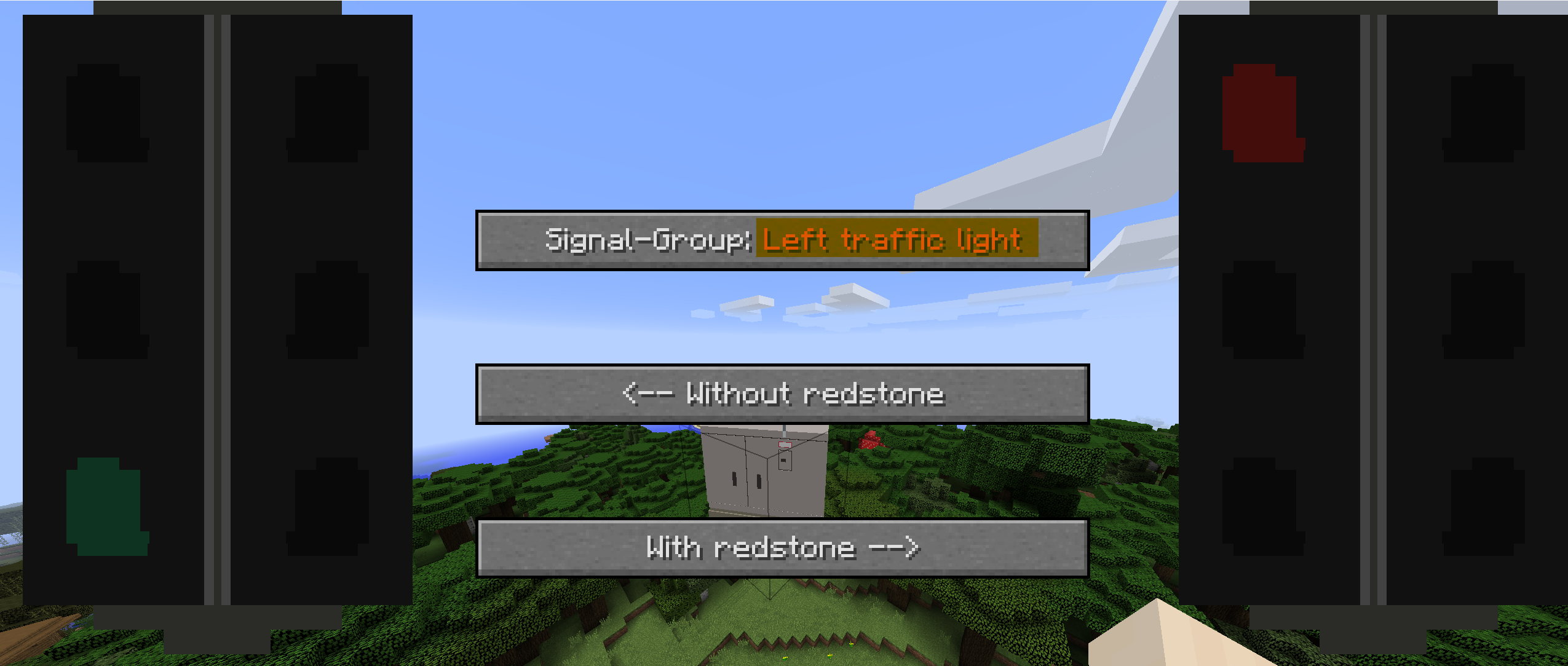

  6. The name of this group

    Required field!

    Can be changed later on.

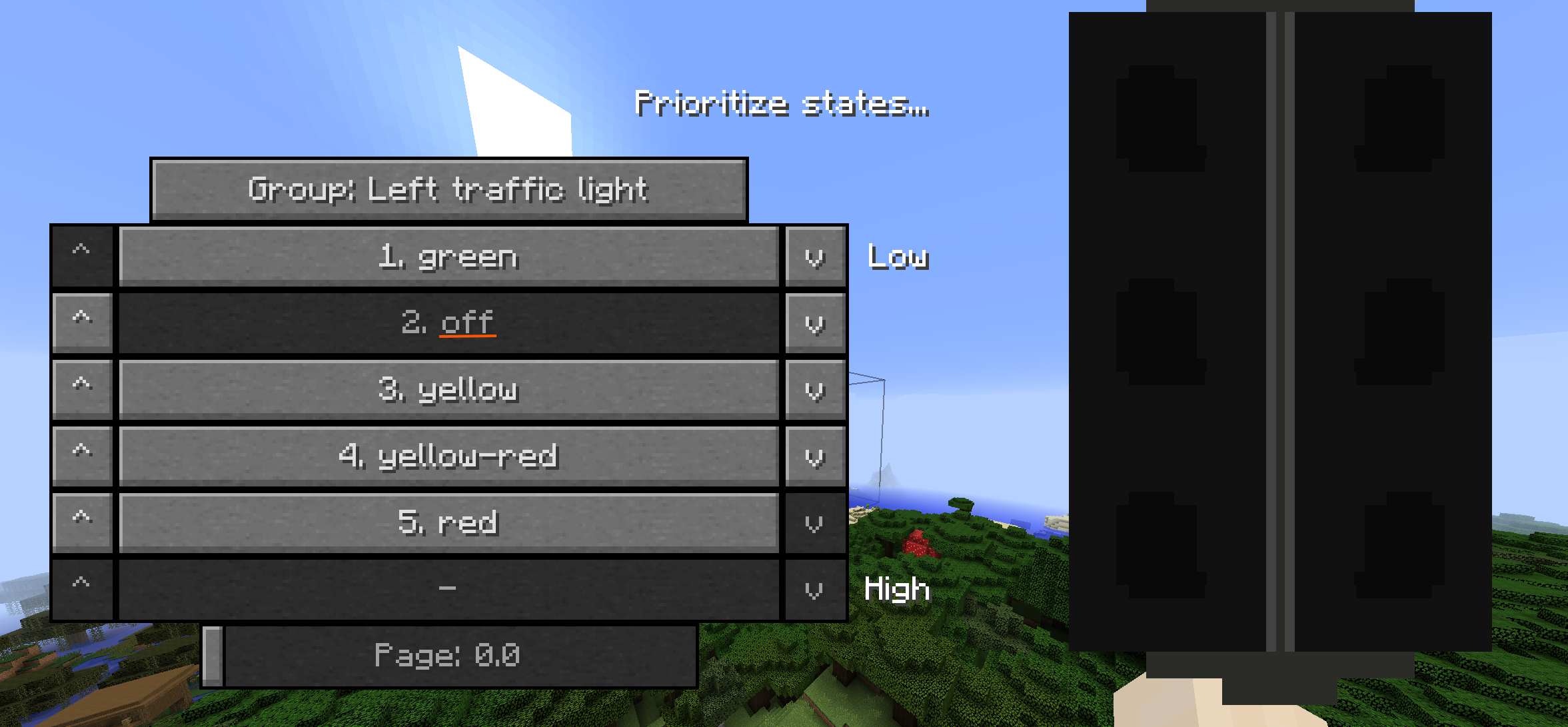

  7. The different states this group has
